Listing Vic 001 / 009 Ells and Coupling

From a Customer, via a co-worker:

I have a quick question. How to I list 001 Victaulic 90’s and 009 Victaulic Couplings? Is there an equivalent? I cannot seem to locate them in HydraLIST

The answer depends on which program is being used:

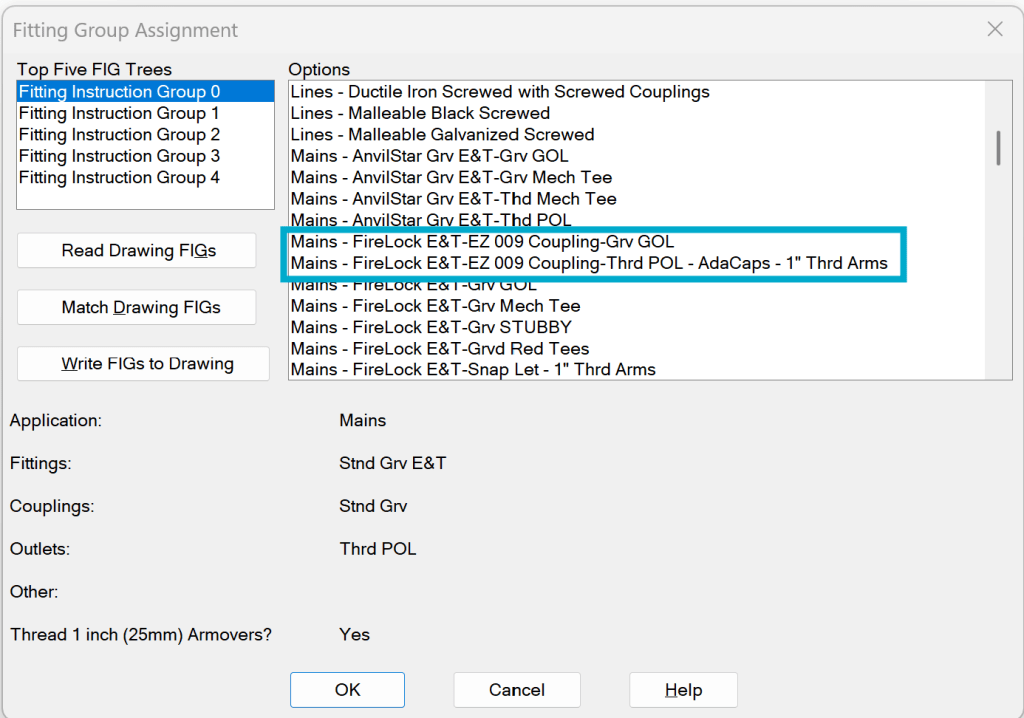

Using AutoList from HydraCAD:

Change your fitting mapping to one of the available Firelock Fitting with 009 Coupling Groups – that’s all it takes

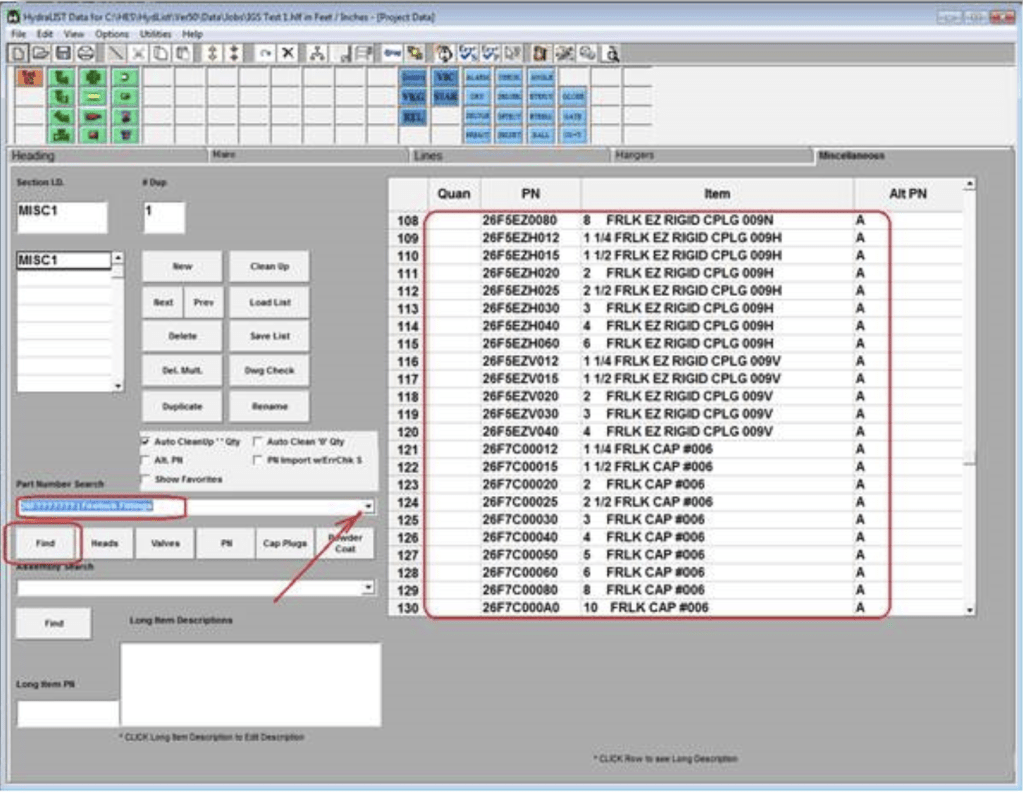

In HydraLIST:

All of the part numbers for these fittings are included in the standard part number database.

In the MISC Input – key in 009 or 26F Firelock Fittings into the Search field and pick FIND to display all the fittings. Enter quantities and select Clean Up when done to remove those items that are not quantified
