List a Plug at the top of a Tee in HydraCAD

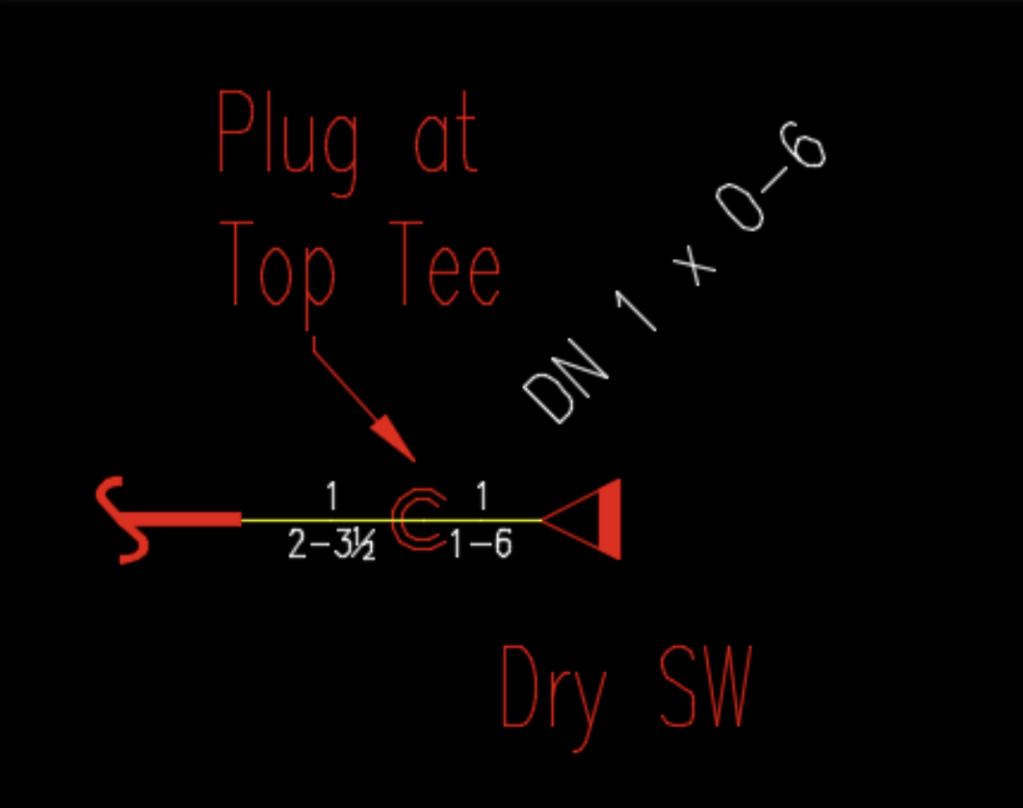

From a customer: Can I AutoList a plug at top of this tee?

From my co-worker Bill – yes you can:

This will list the correct tee at the end of the riser nipple and will list the plug with the miscellaneous material.

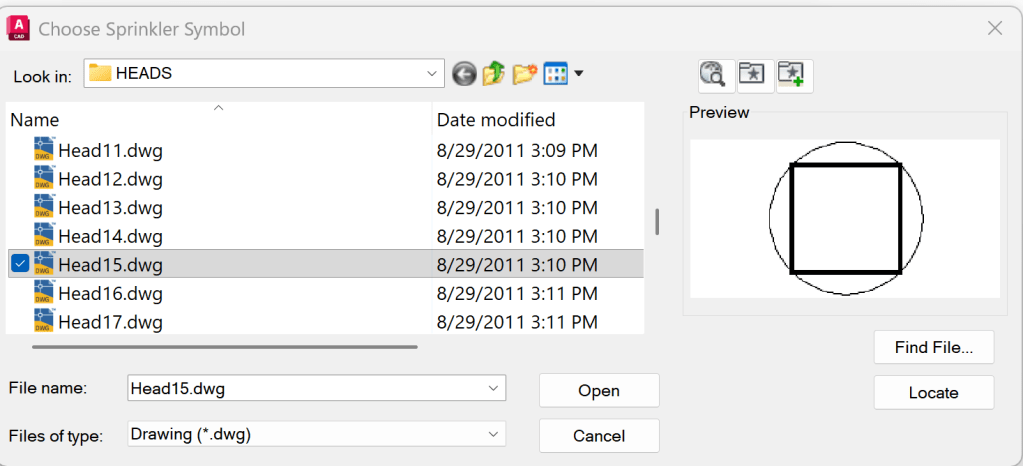

1. Set up a sprinkler to use for this purpose. We often use Head15 because of the way it looks

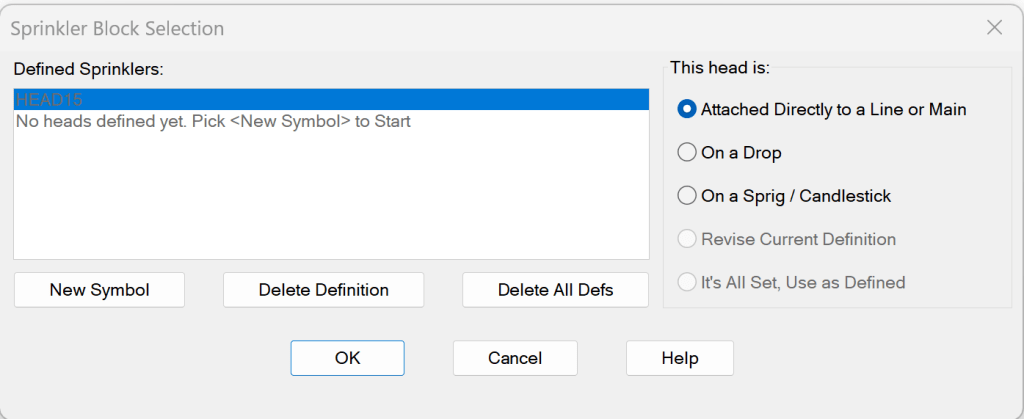

Define the sprinkler head as Attached Directly to a Line or Main

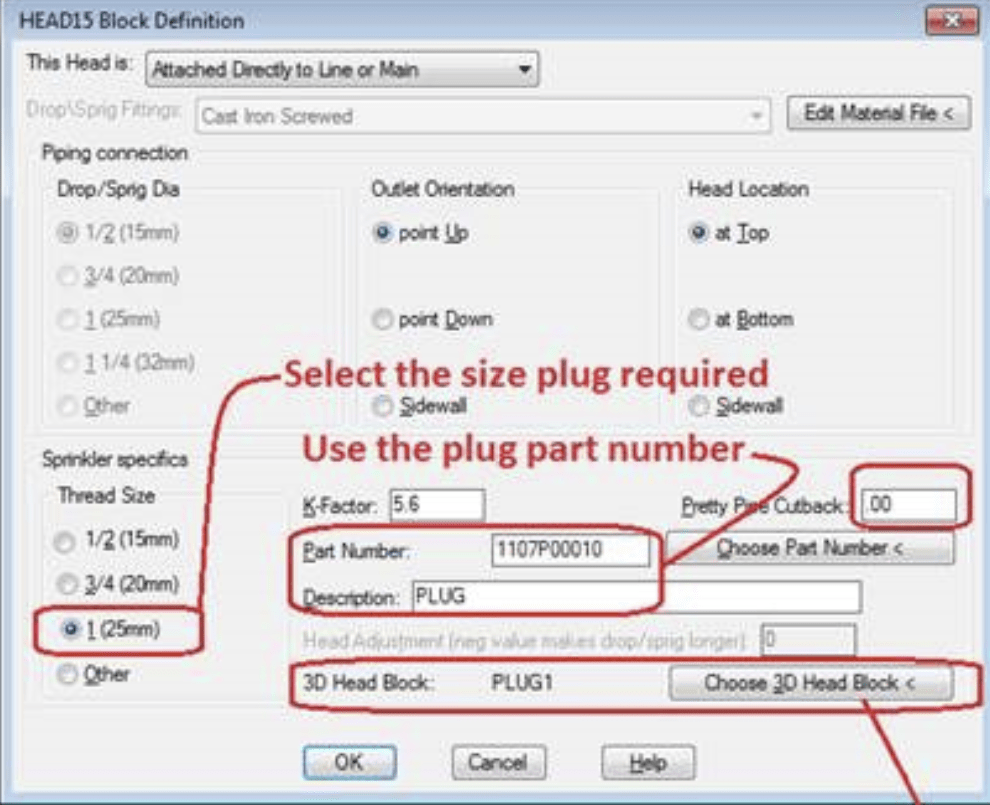

3a. Define the Plug ‘sprinkler’ as “point Down” and “at Bottom” if the plug is at the bottom of the riser nipple. Note: use at Bottom – if the 1’-6” long pipe is lower than the 2’-3 ½” pipe in our example

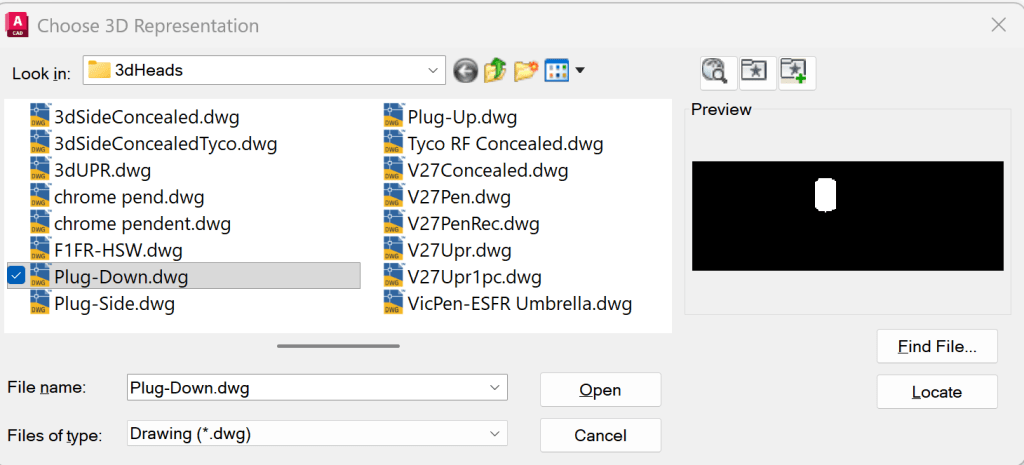

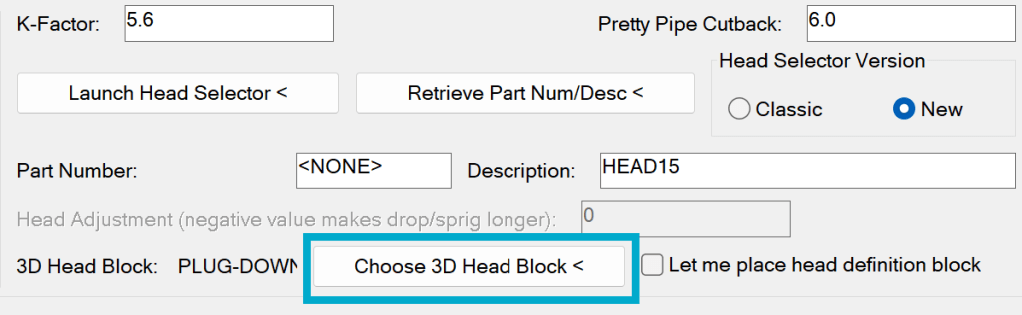

3b. Select Choose 3D Head Block and select Plug1 as the 3D representation

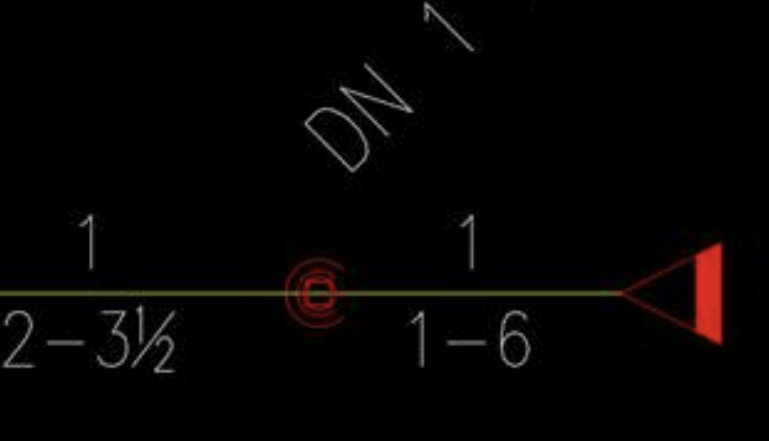

4. Scale the plug/sprinkler block down a bit so you can tell it is there, but not so large as a sprinkler block
